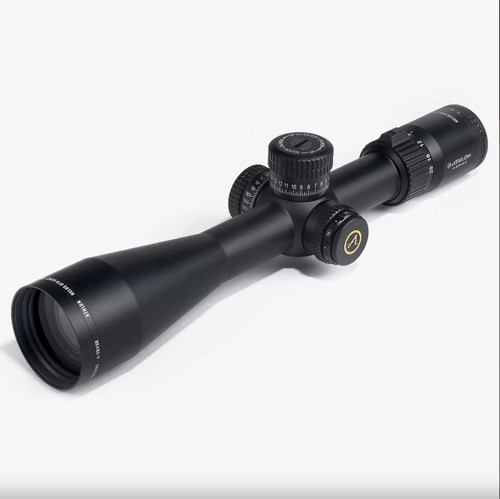

Athlon Helos BTR Gen II Scope Selection

(3 reviews) Write a Review

$599.99

SKU:: BC73397
Brand: Athlon Optics

Current Stock:

Quantity:

Description

Buy this scope and get a $75.00 gift certificate!

A gift certificate with a code will be automatically added to your cart.

When you hear first focal plane riflescope, locking turrets, crisp turrets, advanced fully multicoated options built from a one-piece tube made from aircraft-grade 6061-T6 aluminum you expect to come with a high price tag. This is exactly why we introduced the Helos BTR family. Feature rich but won’t break the bank.

First focal plane design allows you to fully utilize specially designed reticles that shrink or grow along with your target as you zoom in or out. These reticles offer quick target engagement at low power while offering precise holdover positions with finer details.

Locking Turrets feature on both elevation and windage turrets allows you to simply pull up the turrets to dial and push down the turrets to lock them in place. This feature gives you a peaceful mind whether you are moving from one station to next during your competition or putting them away for your next hunting trip.

The illuminated reticle provides greater visibility during dusk and dawn and other low ambient light environment.

Reticle etched on the glass that provides excellent backing support for complex reticle design and offers great durability and much higher shock resistance to recoil

Fully Multicoated optics effectively reduces reflected light and increases the transmission of light giving you a brighter image than normal single coated lenses

The 6061T6 aircraft grade aluminum tube that has exceptional strength and superior mechanical integrity will protect these world class optics no matter what punishment you throw at it.

Heat treated one-piece tube gives the scope extra strength over multi-piece tubes. A one-piece tube also is better at keeping moisture out thus keeping your scope fog proof for the life of the product

Waterproof to protect the scope in the harshest weather conditions or if accidentally submerged underwater

Fog proof to allow you to immediately engage your target when you take your rifle to cold ambient temperature from warm inside

Robust mechanical system with special designs on both control and erector system that give you the ultimate recoil resistance to withstand 1000G recoil for 1000 times.

Argon Purging uses the inertia gas with bigger size molecules to purge any moisture out of the tube giving you better waterproofing and thermal stability.

Specifications	Athlon Helos BTR 6-24×50 Side Focus Riflescope, Black, 30mm Tube, FFP, APLR2 FFP IL MOA	Athlon Helos BTR 6-24×50 Side Focus Riflescope, Black, 30mm Tube, FFP, APMR FFP IR MIL	Athlon Helos BTR 8-34x56 Side Focus Riflescope, Black, 30mm Tube, FFP, APLR2 FFP IR MOA	Athlon Helos BTR 8-34x56 Side Focus Riflescope, Black, 30mm Tube, FFP, APMR FFP IR MIL
Magnification	6-24	6-24	8-34	4.5 -27
Objective Lens Diameter	50 mm	50 mm	56 mm	50 mm
Reticle	APLR2 FFP IR MOA, Glass Etched	APMR FFP IR MIL, Glass Etched	APLR2 FFP IR MOA, Glass Etched	APMR FFP IR MIL, Glass Etched
Surface Finish	Matte	Matte	Matte	Matte
Lens Coating	Wide Band Fully Multicoated	Wide Band Fully Multicoated	Wide Band Fully Multicoated	Wide Band Fully Multicoated
Extra Coating	Xtra Protective Coating	Xtra Protective Coating	Xtra Protective Coating	Xtra Protective Coating
Tube Material	6061 Aluminum	6061 Aluminum	6061 Aluminum	6061 Aluminum
Tube Diameter	34 mm	34 mm	30 mm	30 mm
Exit Pupil	8.2-2.1 mm	8.2-2.1 mm	7-1.7 mm	7-1.7 mm
Eye Relief	3.3"	3.3"	3.3"	3.3"
Field of View @100 yards	16.7-4.5 feet	16.7-4.5 feet	12.5-3 feet	12.5-3 feet
Click Value	0.25 MOA	0.1 mil	0.25 MOA	0.1 mil
Adjustment range per rotation	15 MOA	6 mil	15 MOA	6 mil
Total Elevation Adjustment	60 MOA	18 mil	45 MOA	13 mil
Total Windage Adjustment	60 MOA	16 mil	45 MOA	16 mil
Turret Style	Exposed Direct Dial	Exposed Direct Dial	Exposed Direct Dial	Exposed Direct Dial
Parallax Adjustment	Side Focus – 10 yards to infinity	Side Focus – 10 yards to infinity	Side Focus – 10 yards to infinity	Side Focus – 10 yards to infinity
Purging Material	Argon	Argon	Argon	Argon
Length	14.1”	14.1”	15.5”	15.5”
Weight	29.6 oz	29.6 oz	32.5 oz	32.5 oz

Made in the USA

Customer Reviews

Helos Gen 2 (6-24X56 and 4-20X50)
5
Posted by Buzz D. Clown on Nov 30th 2022

I own the 6-24X56 (Bergara B14R - 22) and the 4-20X50 (6mm Arc Gas Gun) version. The glass quality is excellent for the price. The locking turrets are an excellent feature. Turrets are very tactile when unlocked, and provide a nice feel when adjusting. The internal elevation adjustment on these are fantastic, and the 6-24 in conjunction with the Burris XTR adjustable rings, I have something the almost the full 30 Mill adjustment. Tracking on mine have been excellent.
On the 6-24X56, I can watch certain 22 Bullets strike the target at 100 readily and I have seen the same phenomenon at farther distances in the right conditions.
Oh, and I almost forgot the Zero Stop. I find the Athlon to be far superior to others. I am able to set a 25 yard Zero stop, and then adjust my zero on the turrets for whatever I like. 50, 75, 100. It really doesn't matter. Athlon really has it thought out.
Athlon's warranty is top notch, other than you need to pay the shipping fee, but that is ok. They replaced my Gen 1 Helos that was having issues with the Gen 2 4-20 scope for free in the reticle that I love. If you are looking for a really nice scope for a competition 22 LR or a great general First Focal Plane Hunting scope, please consider this one.
Long range shooting
5
Posted by RANSOM WILLIAMS on May 1st 2021

Just mounted and zeroed in.
Great Scope
5
Posted by Marko on May 2nd 2018

I put this on my Ruger Precision and it is a great scope. Clear glass, great turrets and stays zeroed.
